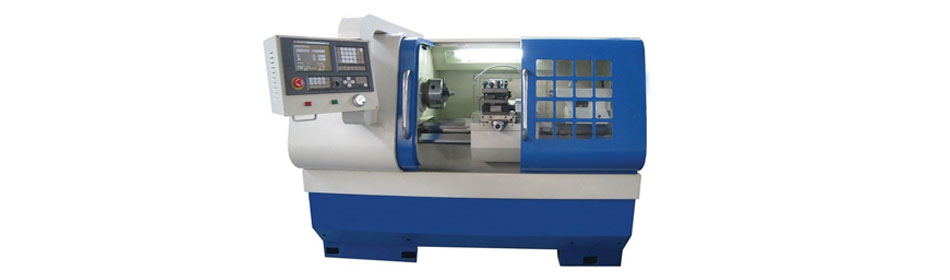

‘SPEED TURN’ FLAT BED CNC LATHE

MODEL

ST 320

Max.swing diameter over bed

360mm

Max swing over cross slide

150mm

Distance between centers

580mm

Bed width

330mm(others 205mm)

Servo spindle

0-3000 rpm

Spindle bore

48

Spindle taper

A2-5

Turret

4 STATION turret

Z /Xfast speed

10m/min

Tailstock taper

MT4

Tailstock travel

120mm

Main motor power

3kw

CNC System

Siemens 808D
